Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine

After-sales Service: 24hours
Warranty: 2 Years
Automatic Grade: Automatic

Products Details

  • Overview
  • Product Description
  • Bag Types
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • Client Vistor
  • FAQ
Overview

Basic Info.

Model NO.
BS-200
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Film
Driven
Servo Motors
Film Forming
Independent Film Frame
Align Ensure
Film Align Device
Optional
Coding Device, Conveyor
Filling Device
Weighter or Volume Cup Filler
Certificate
CE&ISO&Rosh
Function
Doypack Forming, Zipper, Filling and Sealing
Material
SS304 Food Grade
Bag Width
70-200mm
Bag Length
100-350mm
Packing Speed
20-60bag/Min
Packing Material
OPP/CPP, OPP/CE,Pet/PE etc
Voltage
380V/50Hz
Total Power
3.0kw
Weight
1500kgs
Transport Package
Plywood
Specification
2160*1600*1500mm
Trademark
BOSHI
Origin
China
HS Code
84223030
Production Capacity
1000sets/Year

Packaging & Delivery

Package Size
3500.00cm * 850.00cm * 1680.00cm
Package Gross Weight
650.000kg
Lead Time
20 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)

Product Description


Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine
Product Description
Automatic cereal dried fruit nuts grain frozen food stand up ziplock bag zipper pouch packaging machine gummy candy pet food premade bag doypack packing machine
                 Model
BS-200
BS-250
BS-300
BS-160
           Working station                        8
8
8
8
Bag length
100-350 mm
100-350 mm
100-350 mm
100-350 mm
Bag width
70-200 mm
110-250 mm
180-300 mm
80-160 mm
Packing speed
20-60 bags/min
20-60 bags/min
20-60 bags/min
40-80 bags/min
Voltage
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Power
3.0KW
3.0KW
4.0KW
4.2KW
Air pressure
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Air consumption
0.3
0.3
0.3
0.3
Machine weight
1500KG
1500KG
1800KG
1800KG
Machine sizModele
2160*1600*1500
2160*1600*1500
2420*1800*1500
1800*1600*1500

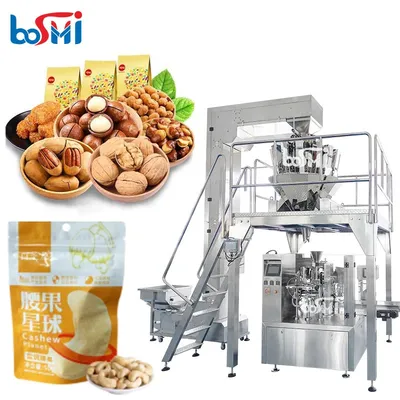

The details of the main parts: Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine

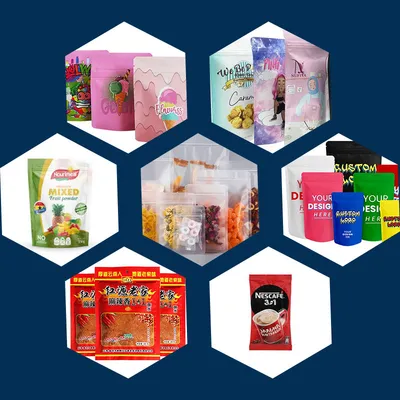

Bag Types

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing MachineApplicable bag type:Snack food, chips, biscuits, cookies, nuts, coffee beans, oatmeal, sugar, rice, frozen food, IQF fruits, salad, vegetables, powder, liquid, paste etc.Applicable bag type:Pillow bag, gusset bag, seal type bag, pyramid bag, standup pouch bag, bag with holes, chain bag, zip lock bag, four side seal bag, three side seal bag etc.
Applicable film material: A variety of laminated films, plastic film, aluminum film, single layer PE film. Film thickness range from 0.04mm to 0.15mm

Detailed Photos

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine



Packaging & Shipping

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine

Company Profile

FOSHAN BOSHI PACKING MACHINERY CO., LTD.Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience.
Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine



Client Vistor

Automatic Cereal Dried Fruit Nuts Grain Frozen Food Stand up Ziplock Bag Zipper Pouch Packaging Machine Gummy Candy Pet Food Premade Bag Doypack Packing Machine

FAQ

1.Why we choose you?
Professional team 24 hours provide service for you
13 months warranty,any main machine parts can be replacement y
Oversea service is provided

2.What is your payment term?
We support TT,Credit Card,Western Union,etc.

3.Are you manufacturer or trading company?
We are 100% real packing machine manufacturer.Any time online video will be supported.

4.You have engineer?can you design machine according my special product?
My boss is our biggest engineer with 15 years packing machine experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.

5.How to check your machine quality after machine finished?
Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.

6.How can I trust you will send machine to us after full payment?
We are a real factory with business license and certificate.
