Basic Info.
Functional Layer
VMPET
Bag Sealing Methods
Flat Bag Packaging
Length
1000m-36000m
Width
10mm-3000mm
Inner Core
3 Inches
Usage
Packaging Film, Logistics Film, Food&Medicine Film
Aluminium Thickness
100A-630A
Thickness
10mic/12mic/15mic/18mic/20mic/25mic/28mic-50mic
O.D.
0.2-3.6
Transport Package
Wooden Pallets
Origin
China
HS Code
3920620009
Production Capacity
100 Tons Per Month
Product Description

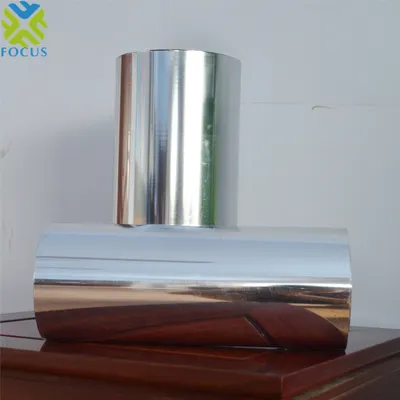

silver aluminum laminated plastic film roll insulation metallized PET BOPP AL film coating LDPE film
Metalized film widely used for flexible packing, such as metalized BOPP film,PET film,PE film ,CPP film ,etc.
Our Lamination
We make laminated materials by both PE Extrusion Lamination and Adhesive Lamination. So we can make different products with different skills based on customers' requirements.
PE Coated Aluminum Metallized PET Film/BOPP/ Aluminum Foil for Building insulation materials
Our Lamination
We make laminated materials by both PE Extrusion Lamination and Adhesive Lamination. So we can make different products with different skills based on customers' requirements.
PE Coated Aluminum Metallized PET Film/BOPP/ Aluminum Foil for Building insulation materials
Structure
- Metallized films
- Clear or Metallized films+PE
- Aluminum foil+PE
- Aluminum foil+PET+PE
- PET+ Aluminum foil+PE
- Customized
Thickness of the films
- Aluminum foil: 6.5mic,7mic,9mic,10mic,12mic etc.
- Metallized PET film:8mic,10mic,12mic etc.
- LDPE coating:4-30mic
Specification
Type of material | Multi layered coated film | ||
Short name | Metallized PET + PE Film | ||
Metallization | Inside | ||
Thickness | The nominal thickness is determined by the total thickness of the materials: (6-12 mic) Metallized PET film + (6-25 mic) PE. The total thickness of the material: ≤ 35 mic | ||
Finalproduct | Roll | ||
Reel | Heat-sealing layer (PE) inside | ||
Materialwidth | 400 - 2200 mm | ||
NET weight | (Min) | 55 kg | |
(Max) | 70 kg | ||
WidthTolerance | -2 mm / +2mm | ||
Lateral Edges Alignment | -2 mm / +2mm | ||
Thickness Tolerance | 6% | ||
Splice | unit/roll | ≤ 1 | |
type | Metallized PET / BOPET / Transparent OPP tape Scotch width ≥ 40 mm | ||
Splicemarking | not necessary | ||
ID | ID material | paper | |
Internal diameter | 76 mm (3 inches) | ||
ID material thickness | 12 ÷ 15 mm | ||
ID width | Material width (0+5) mm | ||
Application
1.Lamination with other materials like bubble, EPE Foam, XPE foam woven fabric and so on for building reflective insulation.
2.Wrapping :Machine packaging, Food packaging
3.First-aid
4.Industrial sheds and Agriculture.
